10.5KW Deye 8000W 48V Off-Grid and On-Grid Solar House Kit with LiFePO4 Battery

Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.

Package Includes:
24 x JINKO 54HL4R-BDB Mono 440W Solar Panel Full Black Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1778x1134x30mm)
1 x DEYE 8000W Hybrid Inverter SUN-8K-SG05LP1-AU (10 Years Manufacturer Warranty)
3 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
2 x PV Safety System with Fuse system
1 x earth system
24 x Commercial Mount Kits Adjustable Angle Version
4 x MC4 Port

1x Framing Kit

1X DC Isolator

1x Label Kit

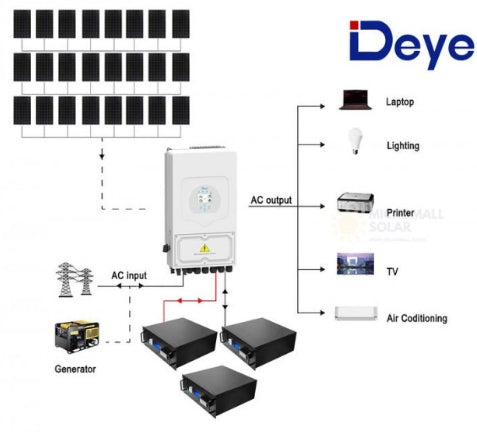

The SUN 8K-SG05 hybrid inverter is ideal for residential and light commercial purposes. It prioritizes solar energy for load use, storing excess power in batteries. The battery can also be charged by a diesel generator, ensuring consistent supply during grid failures.

Technical Specifications:
Model: SUN-8K-SG05LP1-AU
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A):26+26
Max. Input Short-Circuit Current (A):34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8800
Peak Power (off grid): 2 times of rated power, 10 S
AC Output Rated Current:34.8A
Max AC Output Current: 34.8A
Output Frequency and Voltage: 50Hz/45Hz-55Hz

This system must be installed by a qualified solar electrician.

Installation can be arranged at extra cost
