3520W DEYE 48V 5KW Off Grid and On Grid Solar House Kit with LiFePO4 Battery

Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.

Package Includes:
8 x Jinko 54HL4R-BDB Mono 440W Solar Panel Full Black Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x DEYE 5000W Hybrid Inverter SUN-5K-SG04LP1-AU (10 Years Warranty)
1 x EITAI ELESHELL 10.75K Power Wall Lithium LiFePO4 48V 210Ah Solar Battery (15-year warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
1 x 2-in-1 MC4 Connector
2 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 x Fuse Box
1x Mounting Kit

1x Label Kit

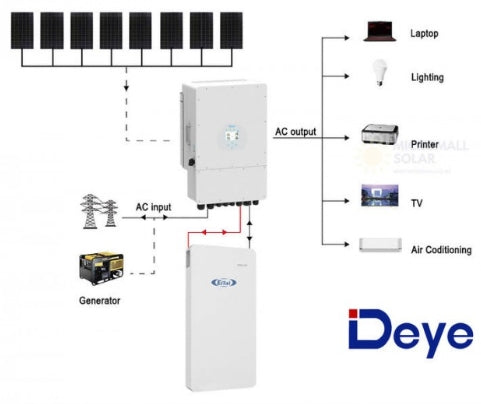

This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

Technical Specifications:
Battery Type： Lead-acid or Lithium-ion
Battery Voltage Range (V)： 40-60
Max. Charging Current (A)： 120
Max. Discharging Current (A)： 120
Charging Strategy for Li-Ion Battery： Self-adaption to BMS
Number of Battery Input： 1
Max. DC Input Power (W)：7500
Rated PV Input Voltage (V)：500
Start-up Voltage (V)： 125
MPPT Voltage Range (V)： 150-425
Rated DC Input Voltage(V)：370
Max. Operating PV Input Current (A)：13+13
Max. Input Short-Circuit Current (A)： 17+17
No. of MPP Trackers/ No. of Strings MPP Tracker： 2/1+1
Rated AC Output Active Power (W)：5000
Max AC Output Active Power (W)： 5000
AC Output Rated Current (A)： 21.7
Max. AC Output Current (A)： 21.7
Weight (kg)： 17
Cabinet size (mm)：330W x 433H x229D(Excluding connectors and brackets)
Protection Degree：

This system must be installed by a qualified solar electrician.

Installation available at extra cost
