7920W Deye 6000W 48V Off-Grid and On Grid Solar House Kit with LiFePO4 Battery

Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.

Package Includes:
18 x Jinko 54HL4R-BDB Mono 440W Solar Panel Full Black Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x DEYE 6000W Hybrid Inverter SUN-6K-SG04LP1-AU (10 Years Warranty)
2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
2 x PV Safety System with fuse box
18 x Rails System
2 x MC4 Port

1x DC isolator 160 AMP DC MCCB Battery isolator

25mm Battery cable 2meter.

1x Label Kit

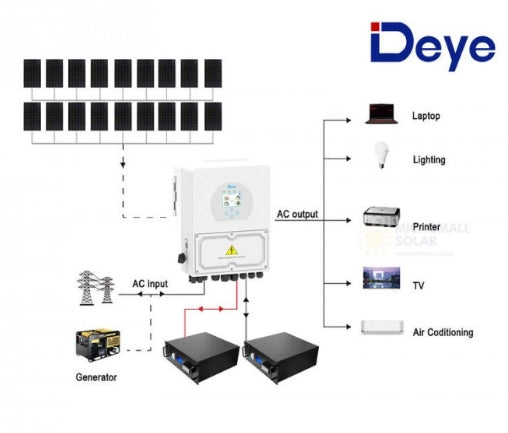

SUN-6K-SG04 is a hybrid inverter ideal for home and light commercial use, optimizing solar self-consumption and enhancing energy independence. During the day, it powers loads using solar, storing excess energy in the battery. This stored energy is used when needed. The battery can also be charged by a diesel generator during grid outages. The inverter has an RS485/CAN port for battery communication and uses a safer 24V battery system.

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS

PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
MPPT Voltage Range (V): 150-425
Start-up Voltage (V): 125
PV Input Current (A): 13+13
MPPT Trackers: 1+1

AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6600
Peak Power (off grid): 2 times of rated power, 10 S
AC Output Rated Current: 26.1A
Max AC Output Current: 26.1A
Grid Type: Single Phase
Weight: 17kg
Size: 330×433×229mm

This system must be installed by a qualified solar electrician.

Installation available at extra cost.
