9680W Deye 16KW 48V Off-Grid and On-Grid Solar House Kit with LiFePO4 Battery

Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.

Package Includes:
22 x JINKO 54HL4R-BDB Mono 440W Solar Panel Full Black Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x DEYE 16kW Hybrid Inverter SUN-16K-SG01LP1-AU (10 Years Manufacturer Warranty)
4 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
2 x PV Safety System with Fuse Box
1x Framing Kit
4 x MC4 Port
1 x Cabinet (dimensions: 63x63x1802mm)

1xDC Isolator

1x Label Kit

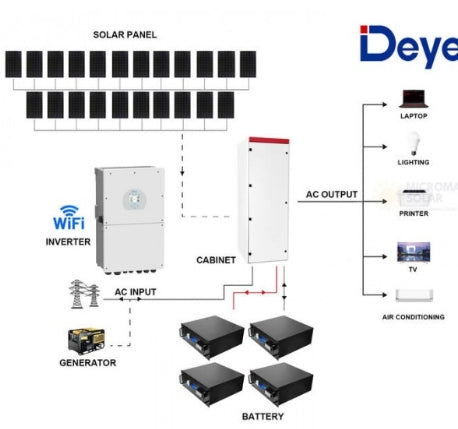

Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

Model: SUN-16K-SG01LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 40-60V
Max. Charging Current: 290A
Max. Discharging Current: 290A
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
Max. DC Input Power: 24000W
Max. DC Input Voltage: 500V
Start-up Voltage: 125V
MPPT Range: 150-425V
Rated DC Input Voltage: 370V
MPPT Trackers: 3
Rated AC Output Active Power: 16000W
Max AC Output Active Power: 16000W
Rated AC Output Current: 69.6A
Max AC Output Current: 69.6A
Max. Efficiency: 97.60%
Max. Efficiency:96.50%
MPPT Efficiency: 99.90%

This system must be installed by a qualified solar electrician.

Installation can be arranged at extra cost.
