*Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Inverter Warranty: 10 Years Warranty**
**Battery Warranty: 15 Years Warranty**

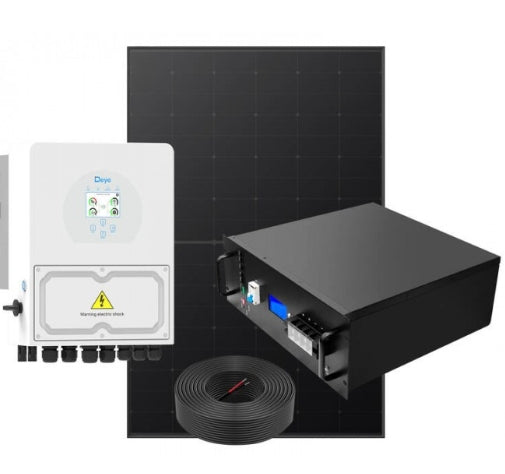

Introducing an exceptional Smart Hybrid system that showcases the latest Jinco 54HL4R-BDB solar panels and a Deye premium hybrid solar inverter system.
Package Includes:
7 x Jinco 54HL4R-BDB Mono 440W Solar full black Half-Cell (dimensions: 1770x1134x30mm)
1 x DEYE 3000W Hybrid Inverter SUN-3K-SG04LP1-AU
1 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 x Safety Switchboard
7 x Mounting Rail System
1 x Solar PV + Battery Label Kit
This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.
Model: SUN-3K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 70
Max. Discharging Current (A): 70
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
AC Output Data
Rated AC Output Active Power (W): 3000
Max AC Output Active Power (W): 3000
AC Output Rated Current (A): 13
Max. AC Output Current (A): 13
**Vector Approved Inverter**
DEYE New Zealand Distributor
This system must be installed by a qualified solar electrician.
Installation can be provided at extra cost
